Anti Climb Galvanized Cross Razor Barbed Wire Mesh Of Corrosion Resistance
High-security razor barbed wire concertina coils designed for maximum perimeter protection in demanding applications.
Product Overview
Razor wire, also known as barbed tape, is a central strand of high tensile core wire and a punched steel tape with sharp barbs at close intervals uniformly. The razor tape is cold crimped tightly onto the spring steel core, and finally into rolls for easy transport and deployment. For long lasting protection in various high security applications, core wires are generally made of galvanized steel or stainless steel wires while blades are typically made of galvanized steel, stainless steel or aluminized zinc steel sheets.
Available Models
BTO10, BTO11, BTO12, BTO22, BTO28, BTO30, CBT65, CBT60
Technical Specifications
- Normal hot dipped galvanized razor wire (40-60g)
- Heavily zinc coated razor wire (70-270g)
- Stainless steel 304/316 grades razor wire
- Clips of concertina wire: 3 clips, 5 clips or without clips
- Coil Diameter options: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm, 950mm, 1000mm
Detailed Specifications
| Reference Model |
Thickness (mm) |
Wire Diameter (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
| BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
| BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
| BTO-28 |
0.5±0.05 |
2.5±0.1 |
28 |
15 |
45±1 |
| CBT-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
| CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±1 |
| CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±1 |
Highlights
1) Robust Protection: Razor Barbed Wire design prevents climbing and ensures safety.
2) High-Durability Protection: Strong physical barrier for secure perimeter defense.
3) Flexible Installation: Easy to set up and adapt to various environments.
4) Psychological Deterrence: Effective in deterring unauthorized access and trespassing.
5) Customizable Options: Multiple sizes for different applications and needs.
Key Features & Benefits
Complete Perimeter Security Solution
- Deterrent Effective prevention of illegal intrusions where traditional fences fail
- Durability Long-lasting security facilities with minimal maintenance requirements
- Coverage Comprehensive protection for complex and extended boundary areas
- Security Strong deterrent force to eliminate safety hazards at the source
- Unbreakable Construction: High-quality, high-strength steel with anti-corrosion treatment provides 8-9 year lifespan
- Ultimate Deterrent: Sharp blade design creates effective psychological and physical barriers
- Economically Efficient: High cost-effectiveness significantly reduces overall perimeter security costs
Applications
Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively deters and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in:
- Prisons and detention facilities
- Government buildings and national security installations
- Residential properties and private building security
- Cottage fencing and high-security perimeter applications

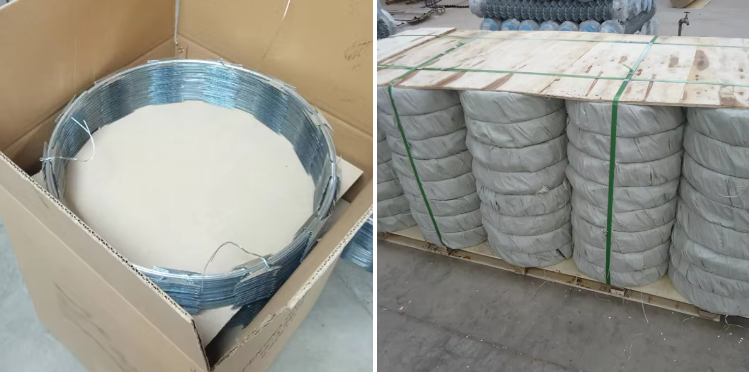

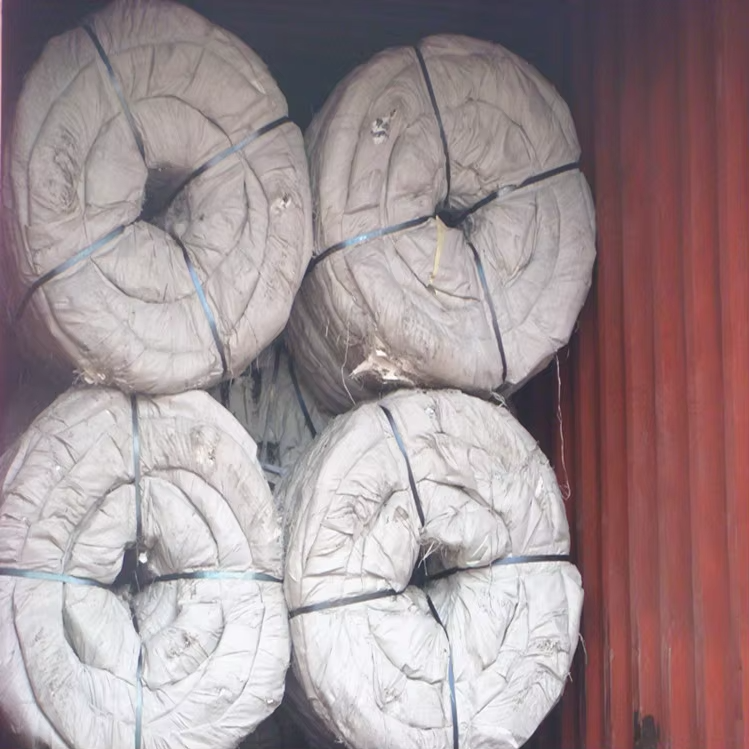

Packaging Options
- Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
- Water-proof paper inside with woven bag outside
- 1 roll, 3 rolls or 5 rolls in one carton
- Custom packaging available as per customer request
Manufacturer Information
Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards.
Specializations: Gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products.
Export Markets: Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
